Midnite Solar's Product List

Item Description

Description

Product Image

MNPV3 DC Combiner, gray alum for 3 -150VDC brkrs or 2 600 VDC fuse holders with 60A plus bus bar, 6 pos PV neg bus bar & ground bus bar

Includes a 60 amp plus bus bar, 6 position PV negative bus bar and a 6 position ground bus bar.

Breakers/fuse holders sold separately.

Description:  (For 150 VDC charge controllers and 600 VDC gridtie inverters)

Gray aluminum type 3R rainproof enclosure w

MNPV2-MC4 Prewired DC Combiner, 2 position, 600vdc Nema 3R, 60A max

The Pre-wired MNPV2 combiner is rated for outdoor use. Designed for combining high voltage strings using 10mm x 38mm fuses up to 60 total. The use of touch safe din rail mount fuse holders and fuses allow operation up to 600 Volts. The MNPV2 is rated for

MNPV3-Bus Bar Copper Bus w/3 fingers Lug for 14-1/0 AWG

MNPV3-Bus Bar Copper Bus w/3 fingers Lug for 14-1/0 AWG

MNPV4-MC4 Prewired DC Combiner, 4 position, 600 VDC, Nema 3R, 80A max

The Pre-wired MNPV4 combiner is rated for outdoor use. Designed for combining high voltage strings using 10mm x 38mm fuses up to 80 amps total. The use of touch safe din rail mount fuse holders and fuses allow operation up to 600 Volts. The MNPV4 is rated

MNPV6-Breaker Busbar  w/6 fingers and 2 lugs for 14-1/0 AWG

MNPV6-Breaker Busbar  w/6 fingers and 2 lugs for 14-1/0 AWG

MNPV6 FUSE BUSBAR Fuse buss bar for 4 fuses

MNPV6 FUSE BUSBAR Fuse buss bar for 4 fuses

MNPV6 DC Combiner, gray alum for 6 -150VDC brkrs or 4 600VDC fuse holders with 14 position neg bus bar & ground bus bar

Includes 15 position PV negative bus bar, 14 position ground bus bar, 120 amp Plus bus bar for breakers and 80 amp bus bar for fuses.

Breakers/fuse holders sold separately.

Description:  (For 150 VDC charge controllers and 600 VDC gridtie inverters) (The

MNPV6-250 DC Combiner, gray alum for 6-250VDC breakers

(For 200 and 250 VDC charge controllers) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept three 300 VDC MidNite Solar breakers.

MNPV6 Disco, Disconnecting pv combiner for up to 6 strings of 150vdc breakers

The MNPV6 DISCO combiner is one in a series of disconnecting PV combiners from MidNite Solar. This model will support several different configurations. You can use 6 of our 150 volt DC breakers and included buss-bar for a 6 string disconnecting combiner.

MNPV6 DISCO AC MICRO, Includes 2 custom bussbars for combining 3 strings of micro inverters

The MNPV6-250 DISCO combiner is one in a series of disconnecting PV combiners from MidNite Solar. This model includes the buss-bar to use up to 3 of our 300 volt DC breakers as a 3 string DC combiner.

MNPV6-250 DISCO, disconnecting PV combiner box, includes the buss-bar to use up to 3 of our 300 volt DC breakers as a 3 string DC combiner

Includes 2 busbars. Can use up to 3 of our 240 volt AC breakers to combine up to 3 strings of 240 volt micro inverters.

MNPV12 DC Combiner, gray alum for 12 -150VDC breakers or 10- 600VDC fuse holders

NOW SHIPPING WITH BOTH TWIN PV MINUS AND PLUS BUSBARS



(For 150 VDC charge controllers and 600 VDC gridtie inverters) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 12 150VDC breakers or 10 600VDC fuse holders. Can suppo

MNPV12-250 DC Combiner, gray alum for 6 -300VDC breakers

Includes 15 position PV negative bus bar, 15 position ground bus bar, and 168 amp Plus bus bar for breakers. Plus busbars can be combined or separated to support 2 high voltage charge controllers. Breakers/fuse holders sold separately.

Description:  (For

MNPV16 DC Combiner, gray alum for up to 16 -600VDC fuse holders

Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 16 - 600 VDC fuse holders. Includes 21 position PV negative bus bar, 18 position ground bus bar, and 240 amp Plus and Minus busbars.

Breakers/fuse holders sold separately.

D

MNPV16-24 DC Combiner, gray alum for 24 single pole 150VDC breakers

The MNPV16-24 PV combiner can hold up to 24 single pole 150VDC breakers. The 240 amp busbar can take 2 dozen 10 amp breakers or sixteen 15 amp breakers or twelve 20 amp breakers

Description:  The MNPV16-24 PV combiner can hold up to 24 single pole 150VDC

MNPV16-250 DC Combiner for use w/300VDC breakers

Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 12 – 300 VDC breakers. Includes 21 position PV negative bus bar, 18 position ground bus bar, and 240 amp Plus and Minus busbars.

Breakers/fuse holders sold separately.

Descr

MNPV12 BUSBAR One half of the bussbar in the MNPV12

MNPV12 BUSBAR One half of the bussbar in the MNPV12

MNPV12-250 BUSBAR One half of the mnpv12-250 bussbar

MNPV12-250 BUSBAR One half of the mnpv12-250 bussbar

MNSPD-600 Surge Supressor, 600V, w/LED indicator

The MidNite Solar Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3. It is designed for both AC and DC systems and provides protection to service panels, load centers or where the SPD is directly connected to the electronic device requirin

MNSPD-115 Surge Supressor, 115V, w/LED indicator

The MidNite Solar Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3. It is designed for both AC and DC systems and provides protection to service panels, load centers or where the SPD is directly connected to the electronic device requirin

MNSPD-300 Surge Supressor, 300V, w/LED indicator

The MidNite Solar Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3. It is designed for both AC and DC systems and provides protection to service panels, load centers or where the SPD is directly connected to the electronic device requirin

MNSPD300FM, SPD 300 and flush mount kit

Our popular SPD 300 Surge Arrestor along with our new Flush mount box. This allows for easy and clean installation of Surge suppression in both new and existing construction where all of the electrical boxes are flush mounted. Comes complete with 18 inche

MNSPDFMB, Flush mount kit for SPD

Flush mounting kit for MidNite Solar SPD’s Comes with 18 inches of metallic flex conduit and fittings. Will accept all of our SPD’s. Surge protector not included.

Classic 150, 150VDC input MPPT charge controller, 12VDC-72VDC battery charging output, 96A output max, built-in communication ports and Groundfault protection

150 volt maximum operating voltage



Max current out: 96 amps



ETL listed to UL1741 and CSA



12-72V battery charging.



Built in DC-GFP and Arc Fault Detector



Solar, wind and hydro MPPT modes



Set up Wizard



Wizard walks you through:

   Battery hook up



Classic 200, 200VDC input MPPT charge controller, 12VDC-72VDC battery charging output, 79A output max, built-in communication ports and Groundfault protection

200 volt maximum operating voltage



Max current out: 79 amps



ETL listed to UL1741 and CSA



12-72V battery charging.



Built in DC-GFP and Arc Fault Detector



Solar, wind and hydro MPPT modes



Set up Wizard



Wizard walks you through:

   Battery hook up



Classic 250, 250VDC input MPPT charge controller, 12VDC-72VDC battery charging output, 63A output max, built-in communication ports and Groundfault protection

250 volt maximum operating voltage



Max current out: 63 amps



ETL listed to UL1741 and CSA



12-72V battery charging.



Built in DC-GFP and Arc Fault Detector



Solar, wind and hydro MPPT modes



Set up Wizard



Wizard walks you through:

   Battery hook up



Classic 250KS, 250VDC input MPPT charge controller, 12-150VDC battery charging output, 40A output max, built-in communication ports and Groundfault protection

250 volt maximum operating voltage



Max current out: 35 amps



ETL listed to UL1741 and CSA



12-120V battery charging.



Built in DC-GFP and Arc Fault Detector



Solar, wind and hydro MPPT modes



Set up Wizard



Wizard walks you through:

   Battery hook up



MNBCM, Battery Monitor 12-48VDC

Midnite has a new battery capacity meter. This meter was designed for our Africa distributor to aid in keeping batteries alive longer.

Features:

1. Led’s that correspond to battery voltage

2. Accuracy +- .05%

3. Auto sensing for 12, 24, 36, and 48 volt ba

MNBCMS, Switched battery Monitor 12-48vdc

Midnite has a new battery capacity meter. This meter was designed for our Africa distributor to aid in keeping batteries alive longer.

Features:

1. Led’s that correspond to battery voltage

2. Accuracy +- .05%

3. Auto sensing for 12, 24, 36, and 48 volt ba

MNGP, Remote Graphics Panel

MidNite Graphics Panel for the Classic charge controller.

MNBTS, Battery temperature sensor

Extra Battery temperature sensor for the Classic charge controller (One is included with the Classic)

MNGP Dummy, Blank Classic Display

Dummy Display Panel for the Classic charge controller.

MNNWC3, 3ft Classic stacking cable

3 foot cable for the MidNite network. Used to network MidNite products together.

MNBE-A Battery Enclosure w/locking door. 3 group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end or one 8D per shelf.

Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf.. Two cabinets can be stacked horizontal or vertical for expansion. Remove middl

MNBE-B Battery Enclosure w/locking door. 8 group 31 or sealed golf cart batteries, gray powder coated steel. Indoor only

Battery Enclosure with locking door and one shelf. Holds eight group 31 or sealed golf cart sized batteries. Gray powder coated steel. Two cabinets can be stacked horizontal or vertical for expansion. Ships knocked down in two cartons. Enclosure size: 33.

MNBE-C Battery Enclosure w/locking door. 12 group 31 or sealed golf cart batteries, gray powder coated steel. Indoor only

MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14” tall PVX-3050T from Concorde. Gray powder coated steel. Two cabinets can be stacked horizontal for expansion. Enclosur

MNBE-CL16 Battery Enclosure w/locking door, 8-L16 batteries,  gray powder coated steel, Indoor only

MNBE-CL16 Battery Enclosure with locking door and two shelves. Holds eight sealed L-16 batteries. Gray powder coated steel. Two cabinets can be stacked horizontal for expansion. Enclosure size: 36.5” wide x 16” deep x 55” tall/190 Lbs including pallet (fr

NO IMAGE

MNBE-C8D Battery enclosure with locking door, 4 shelves for 4 8D batteries

MNBE-CL8 Battery Enclosure with locking door and four shelves. Holds four 8D batteries. Gray powder coated steel. Two cabinets can be stacked horizontal for expansion. Enclosure size: 36.5” wide x 16” deep x 55” tall/190 Lbs including pallet (freight truc

MNBE-D Battery Enclosure w/locking door. 8 battery PVX3050T, gray powder coated steel. Indoor only

Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. The image shows 8 GVX3050T batteries. Ships knocked

MNBE-D3R Battery Enclosure w/locking door. 8 battery PVX3050T, gray powder coated steel. Aluminum for Outdoor use

Rain tight aluminum battery enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. Ships knocked down in two boxes.

MNBE-E Battery Enclosure w/locking door. 8 battery L16 type on 2 shelves, 12 Group 31 type w/extra shelf, gray powder coated steel. Indoor only

Battery Enclosure with locking door and two shelves. Holds eight L16 batteries. Holds 12 group 31 or golf cart batteries with optional third shelf (MN-Shelf) or use the optional third shelf (MN-Shelf) to hold the charge controller. Gray powder coated stee

MN-SHELF, Extra Shelf for MNBE-C/D/E

Extra shelf for MNBE-C, MNBE-D, or MNBE-E

MNCLIPAC1.6 ac clipper for wind turbine

The MidNite Clipper is designed to control Wind or Hydro turbines and work with the Classic to charge your battery. The Clipper communicates with the Classic to slow the turbine when the batteries are full, and also contains a stand alone self powered adj

MNTCB turbine control box with rectifier and stop switch

The MidNite Turbine control box contains over current protection, 3 Phase stop switch and a quality rectifier. The MNTCB contains two 277 VAC 60 Amp 3 phase AC breakers and a 1200 volt 200 Amp 3 phase bridge rectifier.

MN STOP SWITC turbine stop switch

Disconnects turbine from batteries and shorts out turbine. Comes with neutral busbar and ground box terminal.

Description:  Stop Switch for wind turbines 63 amp 150 VDC



Listed by ETL for US & Canada

Box Size  9 x 5 x 4

Weight  3 Lb/s

Pre Wired MNE125STMM-L

CL150 CLASSIC 150 MPPT CHARGE CONTROLLER

MM1524AE MAGNUM 1524AE

MREMOTE MAGNUM SMALL REMOTE

MNEDC60 60 AMP PANEL MOUNT 150 VDC BREAKER

MNEDC80 80 AMP PANEL MOUNT D/C BREAKER

CRATING CRATING AND PALETIZING

MNSPD-300 120 240 VAC / 385 VDC SURGE SUPRESSOR



W



Pre Wired MNEMS4024CL150



MNE250STM-L E-Panel Gray steel E-Panel

MS4024 4000 watt inverter/charger

ME-RC50 remote display

ME-BMK-NS

1 MNEPV2 breaker for BMK

Classic 150 charge controller

2 MNDC panel mount breakers

Battery Main Breaker: 250 Amps

DC-GFP - built into the Classic

Arc

Pre Wired MNEMS4024PAECL150

MNE250STM-L -240 E-Panel white steel E-Panel

MS4448PAE 4400 watt inverter/charger

ME-RC50 remote display

ME-BMK-NS

1 MNEPV2 breaker for BMK

Classic 150 charge controller

2 MNDC panel mount breakers

Battery Main Breaker: 175 Amp

DC-GFP - built into the Cla

Pre Wired MNEMS4448PAECL150

MNE250STM-L -240 E-Panel white steel E-Panel

MS4448PAE 4400 watt inverter/charger

ME-RC50 remote display

ME-BMK-NS

1 MNEPV2 breaker for BMK

Classic 150 charge controller

2 MNDC panel mount breakers

Battery Main Breaker: 175 Amp

DC-GFP - built into the Cla

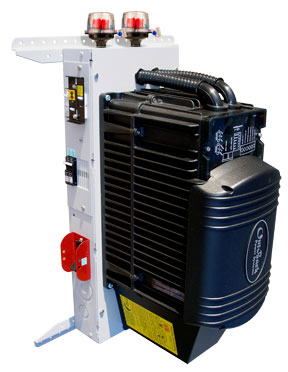

Pre Wired MNEPLUSGVFX3524CL150

MNE250AL-Plus E-Panel White alum E-Panel

GVFX3524 inverter/charger

Mate remote display

Classic 150 charge controller

2 panel mount breakers

2 MNSPD (Surge Protection Device)

DC-GFP - built in to Classic

Arc Fault Detector - built into the Classic

Battery

Pre Wired MNEPLUSGVFX3648CL150

MNE175AL-Plus E-Panel White alum E-Panel

GVFX3648 inverter/charger

Mate remote display

Classic 150 charge controller

2 MNDC panel mount breakers

2 MNSPD (Surge Protection Devices)

Battery Main Breaker: 175 Amps

General labor for assembly, test and crating

Pre Wired MNEPLUSVFX3524CL150

MNE250AL-Plus E-Panel White alum E-Panel

VFX3524 inverter/charger

Mate remote display

Classic 150 charge controller

2 MNDC panel mount breakers

2 MNSPD (Surge Protection Devices)

Battery Main Breaker: 250 Amps

General labor for assembly, test and crating



Pre Wired MNEPLUSVFX3648CL150

MNE175AL-Plus E-Panel White alum E-Panel

VFX3648 inverter/charger

Mate remote display

Classic 150 charge controller

2 MNDC panel mount breakers

2 MNSPD (Surge Protection Devices)

Battery Main Breaker: 175 Amps

General labor for assembly, test and crating



Pre Wired MNESTSGVFX3524CL150

MNE250STS-L E-Panel

Gray steel E-Panel

GVFX3524 3500 watt inverter/charger

MATE remote display

Classic 150 charge controller

2 MNDC panel mount breakers

2 MNSPD (Surge Protection Devices)

Battery Main Breaker: 250 Amps

General labor for assembly, test and

Pre Wired MNESTSGVFX3648CL150

MNE250STS-L E-Panel

Gray steel E-Panel

GVFX3524 3500 watt inverter/charger

MATE remote display

Classic 150 charge controller

2 MNDC panel mount breakers

2 MNSPD (Surge Protection Devices)

Battery Main Breaker: 250 Amps

General labor for assembly, test and

Pre Wired MNESTSGVFX3648CL150

MNE250STS-L E-Panel

Gray steel E-Panel

FX3648 - 3600 watt inverter/charger

MATE remote display

Classic 150 charge controller

2 MNDC panel mount breakers

2MNSPD (Surge Protection Devices)

Battery Main Breaker: 175 Amps

General labor for assembly, test and

Pre Wired MNESTSVFX3524CL150

MNE250STS-L E-Panel

Gray steel E-Panel

GVFX3524 3500 watt inverter/charger

MATE remote display

2 MNEPV63 charge control breakers

Classic 150 charge controller

2 MNDC panel mount breakers

2MNSPD (Surge Protection Devices)

Battery Main Breaker: 250 Amps

Gen

Pre Wired MNESTSVFX3648CL150

MNE250STS-L E-Panel

Gray steel E-Panel

FX3648 - 3600 watt inverter/charger

MATE remote display

Classic 150 charge controller

2 MNDC panel mount breakers

2MNSPD (Surge Protection Devices)

Battery Main Breaker: 175 Amps

General labor for assembly, test and

Pre Wired MNEPLUSGVFX3524CL150DUAL

2-MNE250AL-Plus E-Panel White alum E-Panel’s

2-GVFX3524 inverter/chargers

Mate remote display

2-Classic 150 charge controllers

4-panel mount breakers

3-MNSPD (Surge Protection Device)

Hub 4

DC-GFP - built in to Classic

Arc Fault Detector - built into the

Pre Wired MNEPLUSGVFX3648CL150DUAL

MNEPLUSGVFX3648CL150DUAL

2-MNE175AL-Plus E-Panel White alum E-Panel’s

2-GVFX3648 inverter/chargers

Mate remote display

2-Classic 150 charge controllers

4-panel mount breakers

3-MNSPD (Surge Protection Device)

Hub 4

DC-GFP - built in to Classic

Arc Fault D

Pre Wired MNEPLUSVFX3524CL150DUAL

MNEPLUSVFX3524CL150DUAL

2-MNE250AL-Plus E-Panel White alum E-Panel’s

2-VFX3524 inverter/chargers

Mate remote display

2-Classic 150 charge controllers

4-panel mount breakers

3-MNSPD (Surge Protection Device)

Hub 4

DC-GFP - built in to Classic

Arc Fault Det

Pre Wired MNEPLUSVFX3648CL150DUAL

MNEPLUSVFX3648CL150DUAL

2-MNE250AL-Plus E-Panel White alum E-Panel’s

2-VFX3648 inverter/chargers

Mate remote display

2-Classic 150 charge controllers

4-panel mount breakers

3-MNSPD (Surge Protection Device)

Hub 4

DC-GFP - built in to Classic

Arc Fault Det

NOTTAGUTTER-2

 Competing systems mount the inverters too close together. Notice the physical separation between inverters on the Nottagutter that offers better cooling and improved reliability. Higher charger rates are also achieved due to improved cooling. The Nottagu

NOTTAGUTTER-4

Competing systems mount the inverters too close together. Notice the physical separation between inverters on the Nottagutter that offers better cooling and improved reliability. Higher charger rates are also achieved due to improved cooling. The Nottagut

NOTTAGUTTER-6

Competing systems mount the inverters too close together. Notice the physical separation between inverters on the Nottagutter that offers better cooling and improved reliability. Higher charger rates are also achieved due to improved cooling. The Nottagut

NOTTAGUTTER-8

Competing systems mount the inverters too close together. Notice the physical separation between inverters on the Nottagutter that offers better cooling and improved reliability. Higher charger rates are also achieved due to improved cooling. The Nottagut

MNE125ALULite-L (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE175ALULite-L (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE250ALULite-L (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE125STULite-L - (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE175STULite-L - (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE250STULite-L - (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE175STMULite-L - (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE250STMULite-L (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE175STM-240ULite-L (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE250STM-240ULite-L (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE175STAP240ULite-L (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE250STAP240ULite-L (or -R)

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE125ST-L, 125A-125VDC Breaker, Gray Steel

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE125ST-L-E, 125A-125VDC Breaker, Export Version, Gray Steel

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re



OuBack Version: MNE175ST-L

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE250ST-L

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE125AL-L white aluminum chassis with 125A, 125VDC inverter breaker

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE175AL-L white aluminum chassis with 175A, 125VDC inverter breaker

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE250AL-L white aluminum chassis with 250A, 125VDC inverter breaker

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE125STS-L 125A BKR stretched gray steel, Left

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE175STS-L 175A BKR stretched gray steel, Left

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE250STS-L 250A BKR stretched gray steel, Left

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE125AL-PLUS

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE175AL-PLUS white aluminum chassis, 175A with controller mount, stretched w/FM mounting on door

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

OuBack Version: MNE250AL-PLUS white aluminum chassis, 250A with controller mount, stretched w/FM mounting on door

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

midnite steel grey outback door only right hand with left hand cc bracket for narrow chassis

Gray Steel RH door with LH Chrg Cntrl Brkt for narrow OB chassis

midnite aluminum white outback door only right hand with left hand cc bracket for narrow chassis

Wht Alum RH door with LH Chrg Cntrl Brkt for narrow OB chassis

midnite steel grey outback door only right hand with left hand cc bracket for wide chassis

Gray steel RH door with LH Chrg Cntrl Brkt for wide OB chassis.

charge controller bracket left or right

Extra mounting bracket for the Charge controller on the side of an E-Panel. Available in left or right

Magnum Version: MNE175STM-L, 175A BKR stretched gray steel, Left Door

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

Magnum Version: MNE250STM-L, 250A BKR stretched gray steel, Left Door

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

Magnum Version: MNE125STMM-L, 125A BKR stretched gray steel, Left door for MM series



MNE175ALM-L

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE250ALM-L

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

Magnum Version: MNE175STM-R E-Panel 175A bkr, stretched gray steel RH door

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re



Magnum Version: MNE175STM-L-240, 175A bkr, 120/240VAC white steel with 175A, 125VDC inverter breaker for MS4448-PAE, LH door

The MNE-240 Series E-Panel enclosure from MidNite Solar provides the basic DC and AC overcurrent

protection and disconnects required for a NEC compliant renewable energy system. It is

specifi cally designed to accommodate inverters that provide 120/240VAC

Magnum Version: MS4024AE: MNE250STM-L-240 white steel with 250A, 125VDC inverter breaker for MS4024-PAE

The MNE-240 Series E-Panel enclosure from MidNite Solar provides the basic DC and AC overcurrent

protection and disconnects required for a NEC compliant renewable energy system. It is

specifi cally designed to accommodate inverters that provide 120/240VAC

Magnum Version: MNE250ALM-L, 250A bkr, white aluminum, LH door for MS and RD series 12 and 24VDC inverters

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects

required to install your renewable energy system. It can also expand to grow as your needs arise.

List of features:

? Steel or aluminum chassis with all the re

MNE175 APOLLO

• Comes with inverter breaker

• 2/0 inverter cables

• Pre-wired AC input and bypass

• 500amp 50mV shunt

• 120/240 AC in and out terminal blocks

• 100 amp DC positive and DC negative bus bars

• PV input bus bar

• Din rails to accept six 13mm wide breakers



MNE250 APOLLO

• Comes with inverter breaker

• 2/0 inverter cables

• Pre-wired AC input and bypass

• 500amp 50mV shunt

• 120/240 AC in and out terminal blocks

• 100 amp DC positive and DC negative bus bars

• PV input bus bar

• Din rails to accept six 13mm wide breakers



MNE125DR/TR/SAMLEX-L

This unit is also designed for the Trace DR series and works for the replacement “TR” inverter from Xantrex and the full length Samlex inverters. It comes with all the normal E-Panel features such as inverter cables, PV+ busbar, battery+ busbar, 50 amp AC

Xantrex Version: MNE175DR/TR-L E-Panel 175A bkr, stretched gray steel left hand door for DR/TR

This unit is also designed for the Trace DR series and works for the replacement “TR” inverter from Xantrex and the full length Samlex inverters. It comes with all the normal E-Panel features such as inverter cables, PV+ busbar, battery+ busbar, 50 amp AC

Xantrex Version: MNE250DR/TR-L  E-Panel 250A bkr, stretched gray steel left hand door for DR/TR

This unit is also designed for the Trace DR series and works for the replacement “TR” inverter from Xantrex and the full length Samlex inverters. It comes with all the normal E-Panel features such as inverter cables, PV+ busbar, battery+ busbar, 50 amp AC

MNE175XW 175 AMP BREAKER

Features: inverter battery breaker, 2 separate 60 amp AC inputs for generator and utility, 60 amp AC bypass switch, knockouts for up to seven din rail mount DC, DCGFP63 or AC breakers and 12 panel mount or DC-GFP80 breakers. Massive tin plated copper bus



Xantrex Version: MNE250XW E-Panel 250A bkr, stretched gray steel left hand door for XW

Features: inverter battery breaker, 2 separate 60 amp AC inputs for generator and utility, 60 amp AC bypass switch, knockouts for up to seven din rail mount DC, DCGFP63 or AC breakers and 12 panel mount or DC-GFP80 breakers. Massive tin plated copper bus

MNE125ALT aluminum

White Alum with 125a/125VDC inverter breaker.



When placing an order, specify breaker placement. To do this add -R for right or -L for left to the end of the product number.



Listed by ETL for US & Canada

MNE175ALT

White Alum with 175a/125VDC inverter breaker.



When placing an order, specify breaker placement. To do this add -R for right or -L for left to the end of the product number.



Listed by ETL for US & Canada

MNE250ALT aluminum

White Alum with 250a/125VDC inverter breaker.



When placing an order, specify breaker placement. To do this add -R for right or -L for left to the end of the product number.



Listed by ETL for US & Canada

MNE250LT

Gray steel with 250a/125VDC inverter breaker.



When placing an order, specify breaker placement. To do this add -R for right or -L for left to the end of the product number.



Listed by ETL for US & Canada

MNE125LT

Gray steel with 125a/125VDC inverter breaker.



When placing an order, specify breaker placement. To do this add -R for right or -L for left to the end of the product number.



Listed by ETL for US & Canada

MNE175LT, E-Panel Lite 125A-125VDC breaker, gray steel

Gray steel with 175a/125VDC inverter breaker.



When placing an order, specify breaker placement. To do this add -R for right or -L for left to the end of the product number.



Listed by ETL for US & Canada

MNDC125 DC Disconnect Power Center, white alum w/125A 125VDC breaker

White powder coated aluminum chassis with 250A/125VDC breaker and 5 dinrail breaker slots or 3 panelmount breaker slot

MNDC175 DC Disconnect Power Center, white alum w/175A 125VDC breaker

White powder coated aluminum chassis with 250A/125VDC breaker and 5 dinrail breaker slots or 3 panelmount breaker slot

MNDC250 DC Disconnect Power Center, white alum w/250A 125VDC breaker

White powder coated aluminum chassis with 250A/125VDC breaker and 5 dinrail breaker slots or 3 panelmount breaker slot

MNDC250-Left DC Disconnect Power Center, white alum w/250A 125VDC breaker

White powder coated aluminum chassis with 250A/125VDC breaker and 5 dinrail breaker slots or 3 panelmount breaker slot

MNDC175-LEFT

White powder coated aluminum chassis with 250A/125VDC breaker and 5 dinrail breaker slots or 3 panelmount breaker slot

MNDC125-Left DC Disconnect Power Center, white aluminum w/125A-125VDC breaker

White powder coated aluminum chassis with 250A/125VDC breaker and 5 dinrail breaker slots or 3 panelmount breaker slot

MNDC125-PLUS same as mndc but 2 spots for breakers

The MNDC Plus version of the popular MNDC adds another din rail allowing up to ten din rail mount breakers. Two din rail cover plates and two panel mount plates are included. The panel mount plates allow for mounting the ¾” 125VDC breakers that range from

MNDC175-PLUS

The MNDC Plus version of the popular MNDC adds another din rail allowing up to ten din rail mount breakers. Two din rail cover plates and two panel mount plates are included. The panel mount plates allow for mounting the ¾” 125VDC breakers that range from

MNDC250-PLUS

The MNDC Plus version of the popular MNDC adds another din rail allowing up to ten din rail mount breakers. Two din rail cover plates and two panel mount plates are included. The panel mount plates allow for mounting the ¾” 125VDC breakers that range from

MNDC125-X2 2 125 amp breaker

Mini DC disconnect with 2 of our 125 amp 125 volt dc breakers.

MNDC175-X2

Mini DC disconnect with 2 of our 175 amp 125 volt dc breakers.

MNDC250-X2

Mini DC disconnect with 2 of our 250 amp 125 volt dc breakers.

MNEDC-Quad; Enclosure holds 4 MNEDC80 type breakers

General use aluminum enclosure for 4 panel mount type breakers from 5 - 100 Amp.



Not recommended for use with cables larger than awg #4 (19mm).



Listed by ETL for US & Canada

MNBBB Big Baby Box 9x5x4"

General use enclosure - holds up to 4 13mm wide dinrail breakers from 1-63 amps.



Listed by ETL for US & Canada

MNBB Baby Box, 1-4 Din breakers

The original Baby box has been a huge success in filling an industry need. It does have it’s short comings though as it is a very small enclosure. We have created an enclosure called the Big Baby to over come the Baby Box smallness. This box is at least o

MN Transfer Switch 30A, Dual 30A, 240VAC in Big Baby Box

Dual 30 amp 240VAC Transfer Switch in the Big Baby. Non-listed. 6AWG max. Comes with neutral busbar and ground box terminal.



Listed by ETL for US & Canada

MN Transfer Switch 60A, Dual 60A, 240VAC in Big Baby Box

Dual 60 amp 240VAC Transfer Switch in the Big Baby. 6AWG max. Comes with neutral busbar and ground box terminal



Listed by ETL for US & Canada

the below parts come in 1,2,3,4,5,6,7,8,9,10,12,15,20,30,40,50,60 and 63 amps

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin



MNEPV10 10 amp 150VDC din rail mount breaker (13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

MNEPV3 3 amp 150VDC din rail mount breaker (13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

MNEPV4 4 amp 150VDC din rail mount breaker (13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

MNEPV10-300 10 amp 300VDC din rail mount breaker

7, 10, 12, 15, 20, 30, 50 amp 300VDC UL489 listed din rail mount breaker.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



Listed by ETL for US & Canada

MNEPV12 12 amp 150VDC din rail mount breaker(13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

MNEPV15 15 amp 150VDC din rail mount breaker (13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

MNEPV15-300  15 amp 300VDC din rail mount breaker

7, 10, 12, 15, 20, 30, 50 amp 300VDC UL489 listed din rail mount breaker.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



Listed by ETL for US & Canada

MNEPV20 20 amp 150VDC din rail mount breaker (13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

MNEPV20-300  20 amp 300VDC din rail mount breaker

 7, 10, 12, 15, 20, 30, 50 amp 300VDC UL489 listed din rail mount breaker.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



Listed by ETL for US & Canada

MNEPV30 30 amp 150VDC din rail mount breaker (13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

MNEPV40 40 amp 150VDC din rail mount breaker (13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

MNEPV50 50 amp 150VDC din rail mount breaker (13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

The below part comes in 7,10,12,15,20,30 and 50 amp

7, 10, 12, 15, 20, 30, 50 amp 300VDC UL489 listed din rail mount breaker.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



Listed by ETL for US & Canada



MNEPV50-300  50 amp 300VDC din rail mount breaker

7, 10, 12, 15, 20, 30, 50 amp 300VDC UL489 listed din rail mount breaker.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



Listed by ETL for US & Canada

MNEPV60 60 amp 150VDC din rail mount breaker (13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

MNEPV63 63 amp 150VDC din rail mount breaker (13mm wide)

150VDC din rail mount breaker (13mm wide) Always in stock!

MNEPV breakers are the same as CBI QY breakers available elsewhere except ours are 150VDC!

150VDC ETL listed in the US and Canada

10,000 AIC



All MidNite circuit breakers are rated for 100% contin

MNDC-GFP63, 63 amp, 150VDC, DC ground fault protector Din Mount

63 amp 150VDC DC ground fault protector (UL listed breaker assy).

NEC2008 requires DC-GFP’s on all solar installations.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



Listed by ETL for US & Canada

MNDC-GFP80, 80 amp, 125VDC, DC ground fault protector Panel Mount

80 amp 150VDC DC ground fault protector (UL listed breaker assy) ½ amp trip mechanism connects between battery negative and earth ground NEC2008 requires DC-GFP’s on all solar installations.

10,000 AIC



All MidNite circuit breakers are rated for 100% cont

MNEAC15 15 amp 120VAC din rail mount breaker (13mm wide)

10, 15, & 20 amp 120VAC UL489A din rail mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNDC-GFP50-300, 50 amp,151-300VDC, DC ground fault protector Din Mount

50 amp 300VDC ground fault protector (UL listed breaker assembly). Use this assembly on PV circuits that operate between 151 and 300VDC when required. NEC2008 requires DC-GFP’s on all Solar installations.



All MidNite circuit breakers are rated for 100% c

MNEAC15-2P 15 amp 120/240VAC 2 Pole AVAILABLE IN 15,20,30,50 AND 60 AMPS

15, 20 amp 120/240 VAC UL489 two pole.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEAC20 20 amp 120VAC din rail mount breaker (13mm wide)

10, 15, & 20 amp 120VAC UL489A din rail mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEAC20-2P 20amp 120/240VAC 2 Pole

15, 20 amp 120/240 VAC UL489 two pole.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEAC50 50 amp 120VAC din rail mount breaker (13mm wide) AVAILABLE IN 30,40,50 AND 60 AMP

White or black 30, 50 amp 277VAC UL1077 triple pole.

3,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL Listed



MNEDC10 10 amp 150VDC Panel Mount Breaker

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEAC60QZD 60 amp 277VAC din rail mount breaker Available in 15,30,50 AND 60 amps

White 15, 30, 50, 60 amp 277VAC UL1077 single pole.

3,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL Listed

MNEAC30QZD2P also available in 50 and 60 amo

White 30, 50, 60 amp 277VAC UL1077 double pole

3,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL Listed

MNEAC30QZD3P

White or black 30, 50 amp 277VAC UL1077 triple pole.

3,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL Listed

MNEAC50QZD3P

White or black 30, 50 amp 277VAC UL1077 triple pole.

3,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL Listed

MNEDC50

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC15 15 amp 150VDC Panel Mount Breaker

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC20 20 amp 150VDC Panel Mount Breaker

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC30 30 amp 150VDC Panel Mount Breaker

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC40 40 amp 150VDC Panel Mount Breaker

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC50

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC60 60 amp 150VDC Panel Mount Breaker

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC70 70 amp 150VDC Panel Mount Breaker

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC80 80 amp 150VDC Panel Mount Breaker

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC80-300 80 amp 300VDC Panel Mount Breaker

80 Amp 300 VDC panel mount breaker.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC90 90 amp 150VDC Panel Mount Breaker

5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC100 100 amp 150VDC Panel Mount Breaker

 5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount.

10,000 AIC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC125 125 amp 125VDC Panel Mount Breaker

125amp 125VDC Panel Mount

AIC 10,000 at 125VDC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC175 175 amp 125vdc panel mount breaker

125VDC 3/8” studs 1.5”

AIC 50,000 at 125VDC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

MNEDC250 250amp 125VDC Panel Mount Breaker

125VDC 3/8” studs 1.5”

AIC 50,000 at 125VDC



All MidNite circuit breakers are rated for 100% continuous duty.



UL & CSA Listed

BREAKER PROTECTOR used to protect the 175 and 250 amp breaker handle

Use the Breaker Protector to keep switches from being accidently hit.

MNTS Touch safe fuse holder

Touch Safe Fuse Holder for10x38 mm fuses 600VDC 30 amp Din rail mount Use in the MNPV combiners for high voltage string inverters.

MNFUSE01-1000V 1000 volt fuse available in 1,15 and 20 amps

Goes with MNTS fuse holder. The fuses are, Ferraz Shawmut/Mersen brand, industry standard 10mm x 38mm fuses.

MNFUSE01-600V 600 volt fuse available in 1,2,4,6,7,8,10,12,15,20 and 30 amps

Goes with MNTS fuse holder. The fuses are, Ferraz Shawmut/Mersen brand, industry standard 10mm x 38mm fuses.

Breaker Adapter 1" to 3/4"

1" to 3/4" Breaker Adapter Available to Distributors in 24 pack only

MNGBB Bus Bar 3.45 in

3.45” long with Green screws! Two 1/0 & seven #6 wire slots. Comes with mounting screws. Made in USA, UL and CSA recognized.

Busbar Insulator covers in red. White, green and black short and long

These busbar insulator covers help protect from accidental shorts. Available in White, Green, Black and Red and in short or long sizes. When ordering refer to the product numbers below. All sold in boxes of 12.

Big Breaker plus, 8 stud busbar to add to breaker stud

8 studs for multiple paralleled battery strings. Breaker is sold separately.

Big BUSBAR PLUS or MINUS Same bussbar used in the Not a Gutter

280 amps, Same busbar used in the Nottagutter. Five, 5/16 studs for battery connections. Comes with auxiliary terminal busbar for six small wires #14-1/0.

SHUNT BUSBAR shunt and negative bussbar

Mounts on 500 shunt. Same busbar used in the Nottagutter. Four battery cable studs and six position aux terminal busbar.

MNTBBN 4.63 inch busbar

Mounts on 500 shunt. Same busbar used in the Nottagutter. Four battery cable studs and six position aux terminal busbar.

MNSBBN Bus Bar 2.3 in

2.3” long. Two 1/0 & four #6 wire slots. Comes with mounting screw& nut #10-32 x 7/8”. Made in USA, UL and CSA recognized.

MNSBBR Short Bus Bar Red

(Midnite Short Busbar) Shorter version of the insulated bus bars. These are useful for PV+ input on the narrow OB E-Panel and for a separate PV- bus bar for charge controllers that require them. Four #6 and two 1/0 wire slots and Red insulators.

MNSBBB Short Bus Bar Black

(Midnite Short Busbar) Shorter version of the insulated bus bars. These are useful for PV+ input on the narrow OB E-Panel and for a separate PV- bus bar for charge controllers that require them. Four #6 and two 1/0 wire slots and Black insulators.

MNSBBW Short Bus Bar White

(Midnite Short Busbar) Shorter version of the insulated bus bars. These are useful for PV+ input on the narrow OB E-Panel and for a separate PV- bus bar for charge controllers that require them. Four #6 and two 1/0 wire slots and White insulators.

MNTBW, white insulated terminal bus bar

 Four 1/0 & eleven #6 useable wire slots. Comes with White insulators and 2 lenghts of 10-32 screws. Both copper and aluminum wire is acceptable with these busbars.

MNTBR, Red insulated terminal bus bar

 Four 1/0 & eleven #6 useable wire slots. Comes with Red insulators and 2 lenghts of 10-32 screws. Both copper and aluminum wire is acceptable with these busbars.

MNTBB, Black insulated terminal bus bar

 Four 1/0 & eleven #6 useable wire slots. Comes with Black insulators and 2 lenghts of 10-32 screws. Both copper and aluminum wire is acceptable with these busbars.

© 2009-2012 Remote Power, Inc. All Rights Reserved
